Capsuls STC
Capsuls AC1-STC, manufactured by Isovac and Northwall, has been approved by EASA in Mecaer Aviation Group’s EMS fittings with Supplemental Type Certificate No. 10051018 Rev.4 on Airbus H145T2 and D3.

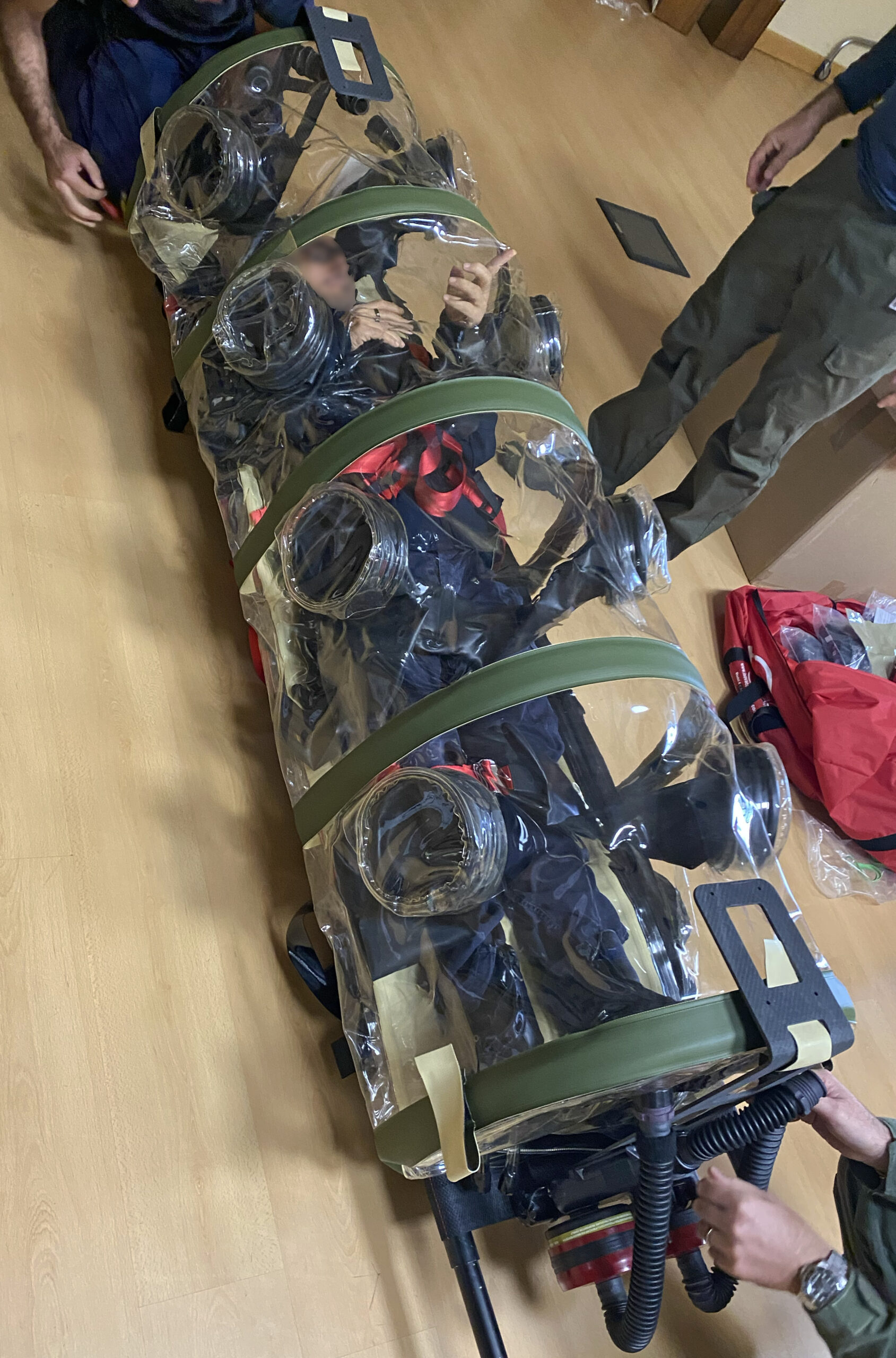

CAPSULS™ AC1-STC is a portable, versatile and efficient patient isolation unit (PIU).
The system includes a flexible, pressurizable isolation enclosure with both positive and negative pressure. Positive pressure isolates and protects the patient (for example, immunosuppressed) during transport operations, mitigating the risks of exposure to infectious agents and/or contaminants. Negative pressure isolates the contaminated patient minimizing the possibility of contamination of the operator and surrounding environment during transfer operations.
CAPSULS™ is patented (registered trademark of ISOVAC LLC) (Containment and Protection System Using Life Support).
The Capsuls model mod. AC1-STC has a unidirectional filtered air recirculation system for patient support, as well as gloved access and special features that allow work on the critical or emergency patient through the use of external equipment and internal operations
Main uses of the mod AC1-STC :
- Isolated transport of patients in helicopters, airplanes, ambulances, boats or any vehicle suitable for the safe transport of the patient on standard stretchers on which the patient is secured with a belt system tested for current regulations on each vehicle.
- Temporary isolation in hospitals or other health care facilities, also during the diagnostic phase (CT and RX).
Specifications
Length: 198 cm
Width: 61 cm
Thickness: 46 cm
Weight: 14 kg
Technical standards
Tested according to the Community Directive
93/42 and 2007/47
EN 1789:2007+A2:2014
Dir. Minsalute 0035824-07/12/2015-DGPRE-DGPRE-P
Accessories
Stretcher Talon II
The Capsuls Bio Containment System is compatible with NATO military standard TALON II 90C stretchers allowing storage in a small space with a weight of 7.4 kg.
The Talon II is certified safe-to-fly US Army rotary wing and is compatible with helicopter locks from a variety of manufactures (STC)
